Multifunction welding machine with inverter technology, perfect for full or animated MIG / MAG wire welding, MMA electrodes and tig lift. With accessories.

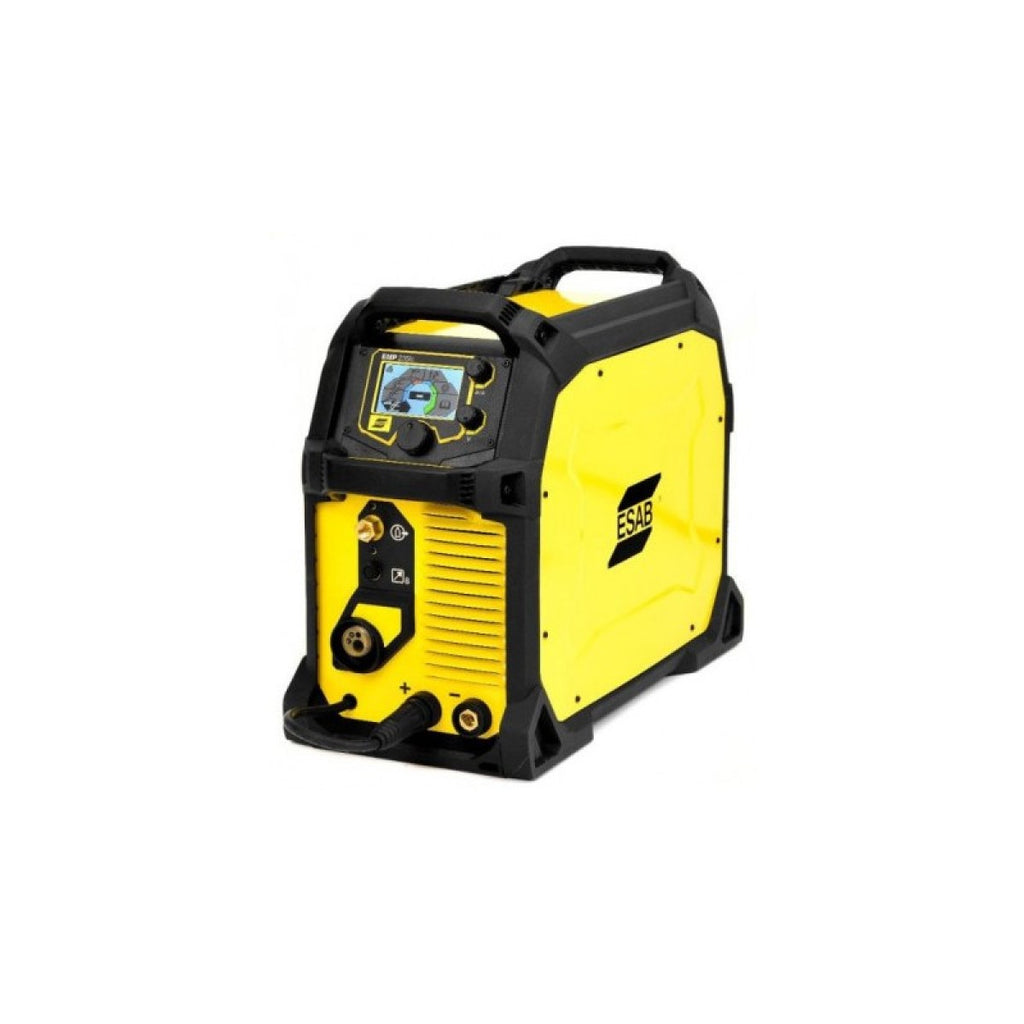

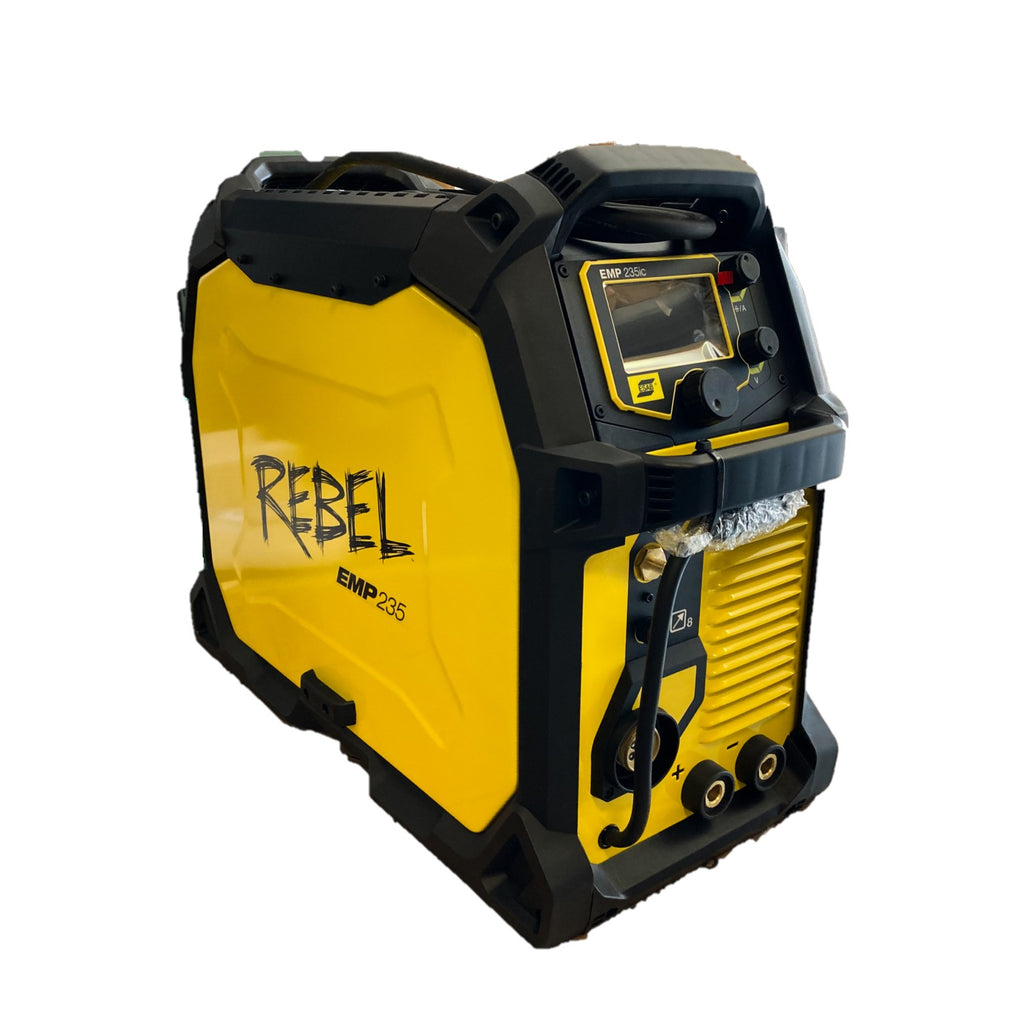

ESAB Rebel EMP 235IC - 0700300989
ESAB Rebel EMP 235IC is a single professional welding machine for three welding processes for excellent performance in any industrial application: flush MIG / MAG, with MMA electrode and TIG LIFT.
The multiprocess welding machineESAB Rebel EMP 235IC is equipped with TSMIG ECNOLOGY ("Smart Mig") allows the system to "learn" constantly and adapt to the operator's welding technique to provide a stable arc and repeatable top welds, also increasing the productivity of the most experienced welders and reduces the times of Training for welders with little experience.
It has the capacity to weld full wire, through the use of Argon / CO2 protection gas, or with animated wire (no-gas).
The Rebel EMP 235IC welder can use wires from 0.6 mm to 1.0 mm and animated wires up to 1.2 mm in coils both 200 mm and 300 mm.

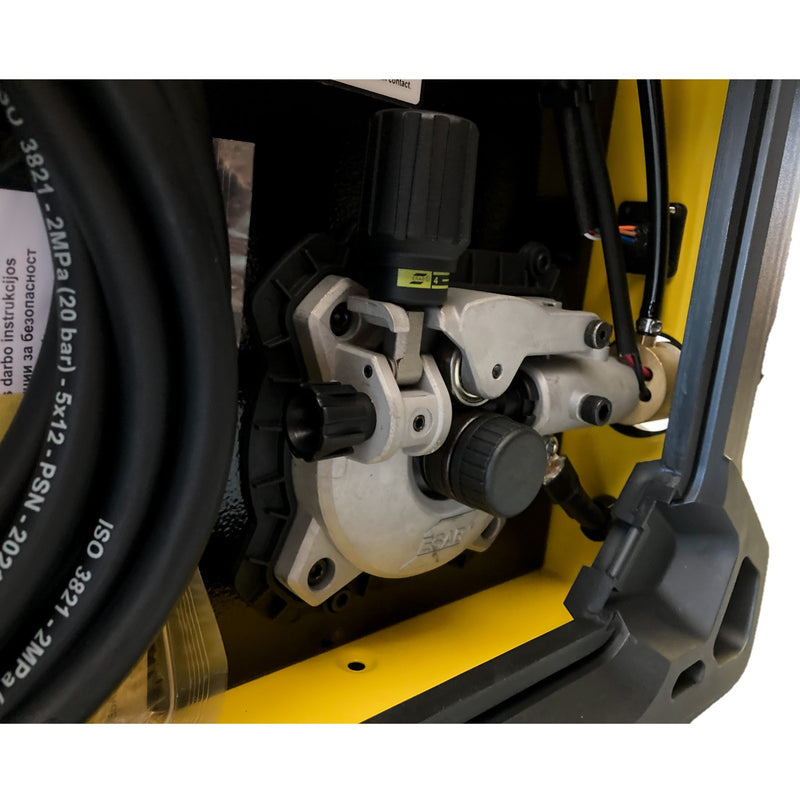

With metal wire frame
It can weld basic, rutile and cellulose MMA electrodes for up to 4 mm in diameter.
It offers optimal LIFT TIG welding with pre-gas / post-gas flow adjustment and the welding current drop-down / ramp of the welding current.

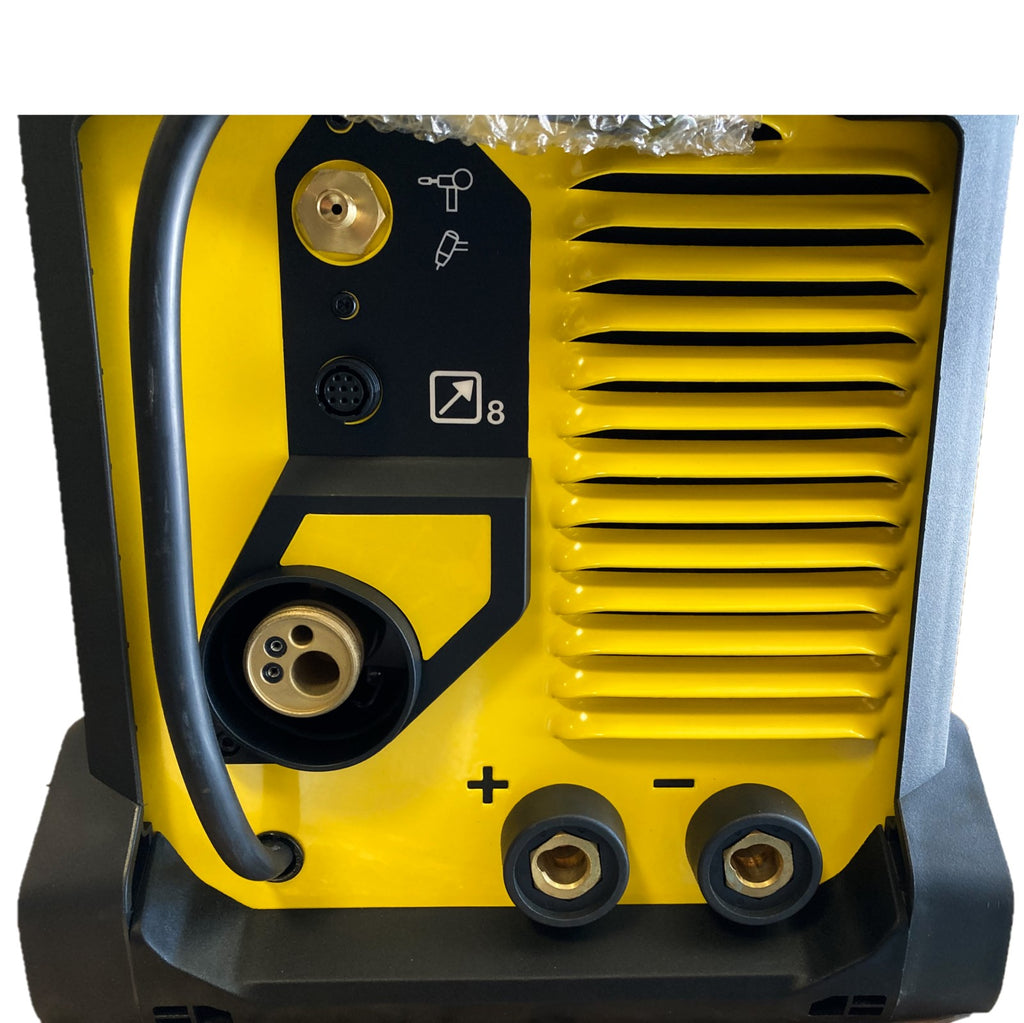

It has two gas inputs, one per mig and one per tig, with the possibility of connecting them simultaneously.
The TIG gas solenoid valve, integrated on the front side of the machine, eliminates the need for a manual valve on the TIG torch.

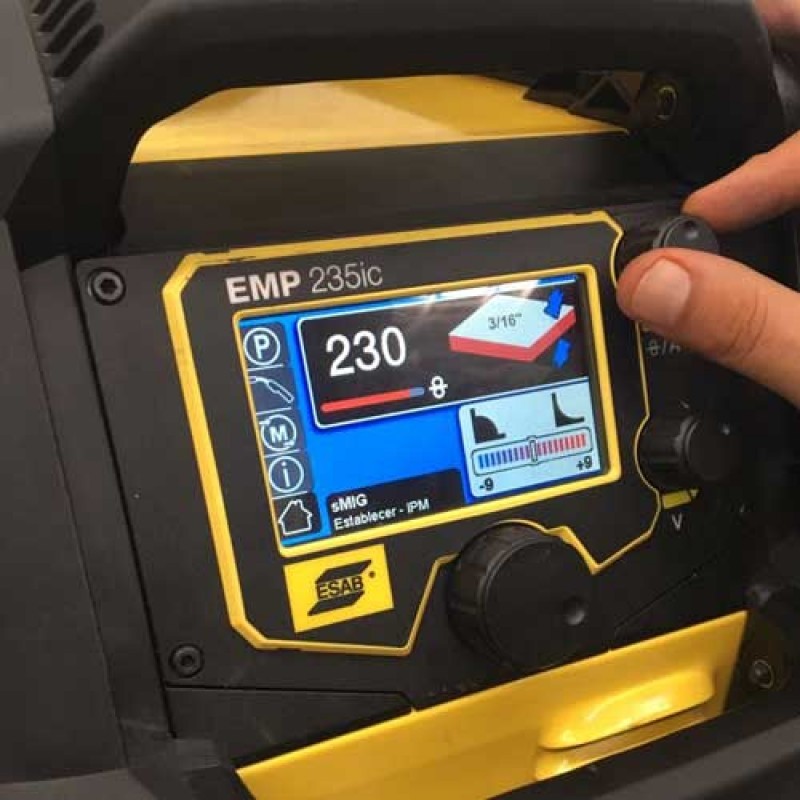

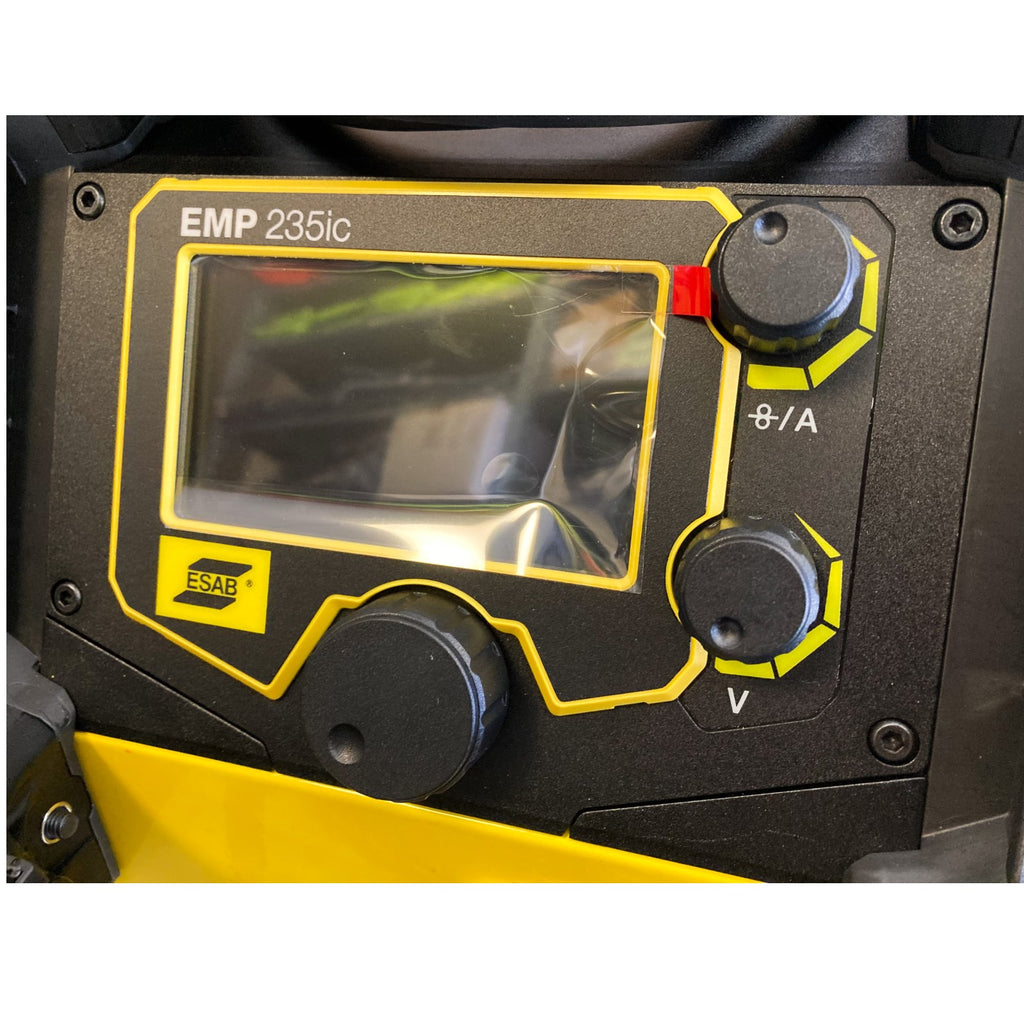

The TFT multilingual display offers a rich feature:
- 4 programmable memory positions for each process
- The adjustment of inductance
- The regulation of the pre / post-flow gas
- The point welding setting, allowing you to accurately adjust the welds and achieve optimal performance
- The selection of various languages
- MIG MXLTM 270 torch from 3 m, Spare parts compatible with Torch Series 25
- MMA electrode welding cable kit from 3 m
- 4.5 m gas pipe with quick connection
- Towing rollers
|Voltage||120/230 V - 50 / 60Hz
|Power supply interval||90-270 V|
|Open circuit voltage||68 V|
|Nominal consumption||3 kW (with generator> 6.0 kW)|
|Maximum outgoing current||250 a|
230 A - 25%
195 A - 40%
170 A - 60%
210 A - 25%
150 A - 60%
235 A - 40%
200 A - 60%
|MIG welding voltage interval||14.8 - 26 V|
|Thread supply speed interval||2.0 - 17.8 m / min|
|Maximum sheet metal thickness||9.5 mm|
|Interval Thread diameter
0.6 - 1.0 mm
0.8 - 1.0 mm
0.8 - 1.2 mm
0.8 - 1.2 mm
|Filo reel size||100 - 200 - 300 mm|
|Size||686 x 292 x 495 mm|
